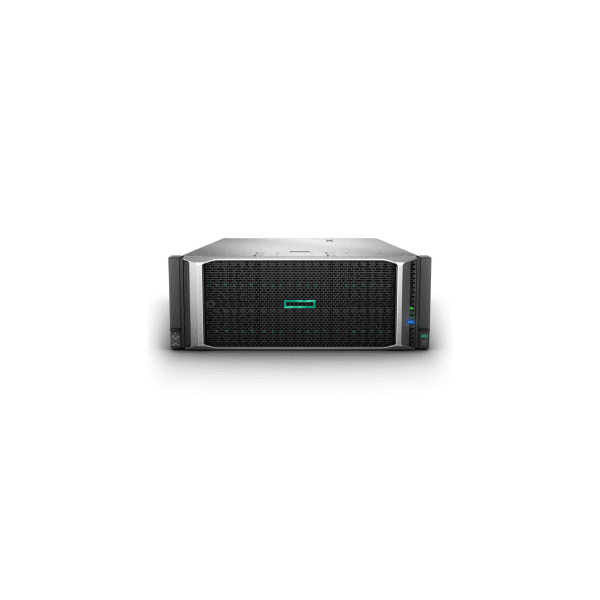

Name: HPE Proliant DL580 Gen10 Server - 869853-AA1
Brand: One Solution Hardware Co

HPE Proliant DL580 Gen10 Server Overview

HPE DL580 Gen10 5118 2P 32GB 8SFF CN Sever comes standard with two Intel Xeon-Gold 5118 (2.3GHz/12-core/105W) processors supporting up to four processors; comes standard with 32 GB DDR4-2666 MT/s (2 ×16 GB) memory, up to 48 memory slots; built-in HPE Smart Array P408i-p SR Gen10 12Gb SAS array controller with intelligent storage battery; standard 8 SFF hot-plug hard disk slots, up to 48 One SFF hot-swappable hard disk,

Quick Spec

Model	869853-AA1
Description	HPE ProLiant DL580 Gen10 5118 2.3GHz 12C 105W 2P 32G-2R P408i-p 8SFF 2x1600W Base CN Server
Processor	Two?Intel Xeon-Gold 5118 (2.3GHz/12-core/105W) processors, supporting up to four processors
Memory	Comes standard with 32 GB DDR4-2666 MT/s (2 ×16 GB) memory, up to 48 memory slots
Array Controller	Built-in HPE Smart Array P408i-p SR Gen10 12Gb SAS array controller with intelligent storage battery
Hard Disk	Standard 8 SFF hot-plug hard disk slots, up to 48 One SFF hot-swappable hard disk, standard without hard disk
PCI-E	Seven PCI-E 3.0 slots
Power Supply	Two 1600W hot-swap platinum power supply, optional support for redundancy (3+1)
Rack Type	4U
Dimensions (H x W x D) (with bezel)	17.48cm x 44.55cm x 75.18cm (6.88 x 17.54 x 29.60 in)
Weight (approximate)	51.71 kg (114 lb) Maximum: (all hard drives, power supplies, DIMMs and processors installed) 28.12 kg (62 lb) Minimum: (one processor, one standard heatsink, one air baffle, one hard drive, two power supply, one DIMM, one NIC one rail kit with CMA and one primary riser installed)

HPE DL580 Gen10 8SFF 869853-AA1 Specification

869853-AA1 Specification
Description	HPE ProLiant DL580 Gen10 5118 2.3GHz 12C 105W 2P 32G-2R P408i-p 8SFF 2x1600W Base CN Server
Processor	Two Intel Xeon-Gold 5118 (2.3GHz/12-core/105W) processors, supporting up to four processors
Memory	Comes standard with 32 GB DDR4-2666 MT/s (2 ×16 GB) memory, up to 48 memory slots
Array Controller	Built-in HPE Smart Array P408i-p SR Gen10 12Gb SAS array controller with intelligent storage battery
Hard Disk	Standard 8 SFF hot-plug hard disk slots, up to 48 One SFF hot-swappable hard disk, standard without hard disk
PCI-E	Seven PCI-E 3.0 slots
Power Supply	Two 1600W hot-swap platinum power supply, optional support for redundancy (3+1)
Rack Type	4U
Dimensions (H x W x D) (with bezel)	17.48cm x 44.55cm x 75.18cm (6.88 x 17.54 x 29.60 in)
Weight (approximate)	51.71 kg (114 lb) Maximum: (all hard drives, power supplies, DIMMs and processors installed) 28.12 kg (62 lb) Minimum: (one processor, one standard heatsink, one air baffle, one hard drive, two power supply, one DIMM, one NIC one rail kit with CMA and one primary riser installed)
