Lenovo ThinkSystem ST50 V2 – Tower Intel Xeon E-2324G 4C 3.1GHz 8GB/1TB HDD
Lenovo ThinkSystem ST50 V2
An entry tower server optimized for performance. A powerful, compact and quiet server ideal for discreet desk side or under desk placement in any business, retail, remote/branch or home office.
Product Description
Description
Lenovo ThinkSystem ST50 V2Server
Powerful, compact, and affordable first server
An entry tower server optimized for performance. A powerful, compact and quiet server ideal for discreet desk side or under desk placement in any business, retail, remote/branch or home office. The ThinkSystem ST50 V2 provides professional grade storage, reliability and serviceability. A first server designed to grow with your business.
Features
Powerful and high value
An ideal first server for your growing business, remote/branch office, or retail location, the Lenovo ThinkSystem ST50 V2 enhanced performance increases productivity.
The ThinkSystem ST50 V2 boasts the improved operation of the latest Intel® Xeon® E-2300 processors. With a 17% increase in performance the ThinkSystem ST50 V2 offers professional-level capabilities at an entry-level price-point. High value versus a workstation with the benefits of a resilient server.
Flexible
The ThinkSystem ST50 V2 adds value and flexibility for your growing business by providing support for three PCIe slots with support of single NVIDIA GPU, and various high bandwidth network adapters along with an array of compatible storage drives. It can be scaled to fit your growing business, provides high reliability, and uses common components to reduce costs.
Lenovo’s XClarity (USB) provisioning manager enables easy setup and firmware upgrades while Intel Active Management Technology (AMT)saves time and reduces costs by monitoring system health and preventing data disruption.
Energy-efficient, quiet, yet powerful
Designed for discretion the ST50 V2’s compact size, flexible mounting options, and whisper-quiet acoustics allow it to be placed in an office environment without disruption
It´s energy-efficient with a TDP of no more than 95W and supports up to 8 core performance. Providing optimal performance for increased productivity and energy cost-savings.
Tech Specs
| New! | ThinkSystem ST50 V2 – Tower (3.5″ SS/HDD) |
| Processor | 1xIntel Xeon E-2324G 4C 3.1GHz 65W Processor |
| # of Cores & Threads | 4 core |
| Form factor | Tower (can be installed in a rack with the available Rack Mount Kit) |
| Chipset | Intel C256 chipset (“Tiger Lake”) part of the “Tatlow” platform |
| Memory | ThinkSystem 8GB TruDDR4 3200 MHz (1Rx8, 1.2V) ECC UDIMM |
| Four DIMM sockets supporting Lenovo TruDDR4 DIMMs at 3200 MHz (Xeon processors). Support ECC UDIMMs. | |
| HDD | 1xThinkSystem ST50 V2 3.5″ 1TB Client 7.2K SATA 6Gb NHS 512e HDD |
| Disk drive bays | Up to 3x non-hot swap (NHS) drive bays: 2x 3.5-inch NHS drive bays supporting HDDs or SSDs; 1x 2.5-inch NHS drive bay supporting an SSD |
| RAID support | Onboard 6 Gb SATA controller, supporting AHCI mode (non-RAID) or Intel RSTesoftware RAID (RAID 0, 1, 5) |
| Optical Drive | ThinkSystem ST50 V2 Slim SATA DVD-RW Optical Drive Kit (Standard) |
| Video | Integrated Intel Graphics Technology (Intel GT) on most processors.Two DisplayPort ports. Maximum resolution is 3840 x 2160 pixels (4K) at a refresh rate of 60Hz. |
| PCI expansion slots | Three PCIe slots as follows: Slot 1: PCIe 4.0 x16 full-height half-length (FHHL); Slot 2: PCIe 3.0 x1 FHHL; Slot 3: PCIe 3.0 x4 (physical connector is x16) FHHL |
| Tape drive bays | Support external backup units only. |
| Network interfaces | One integrated Gigabit Ethernet 1000BASE-T port (RJ-45) using Intel I219-LM controller. |
| Systems Mgmt | Power and drive activity LEDs. Intel Active Management Technology (AMT) 15.0 server |
| management. Supports Integrated Lenovo XClarity Provisioning Manager Lite (USB memory | |
| key-based) for system setup and firmware upgrades. No support for XClarity Controller (XCC). | |
| Security features | Power-on password, administrator’s password, Trusted Platform Module (TPM), supporting TPM |
| 2.0. Optional Chassis intrusion switch. Padlock loop and Kensington cable slot for physical security. | |
| Keyboard | ThinkSystem Pref. Pro II USB Keyboard – US English |
| Mouse | ThinkSystem Optical Wheel Mouse – USB |
| VGA Dongle | ThinkSystem DP to VGA Dongle Kit |
| Front Ports | Five USB ports: 1x USB 3.2 G2 with USB-C connector (10Gbps), 2x USB 3.2 G2 (10Gbps), 2x USB 3.2 G1 (5Gbps) |

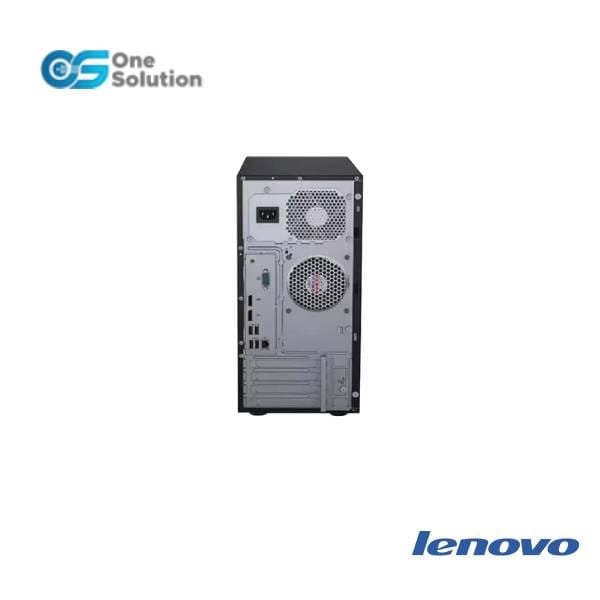

| Rear Ports | Four USB ports (all USB 3.2 G1 (5Gbps), Two DisplayPort video ports (require a processor with integrated graphics), One RJ-45 Gigabit Ethernet port, One serial port, |
| Power Supply | ThinkSystem ST50 V2 Platinum ATX-500W Power Supply(Standard) |
| Power Cord | Line cord – 2.8m, 10A/125V, C13 to NEMA 5-15P (US) |
| Dimension | Height: 376 mm (14.8 inches), width: 170 mm (6.7 inches), depth: 316 mm (12.4 inches) |
| Weight | Maximum: 9.4 kg (20.7 lb) |
| Warranty | Ess 3 Y P, L, O/S, 4Hrs, 24×7 |
