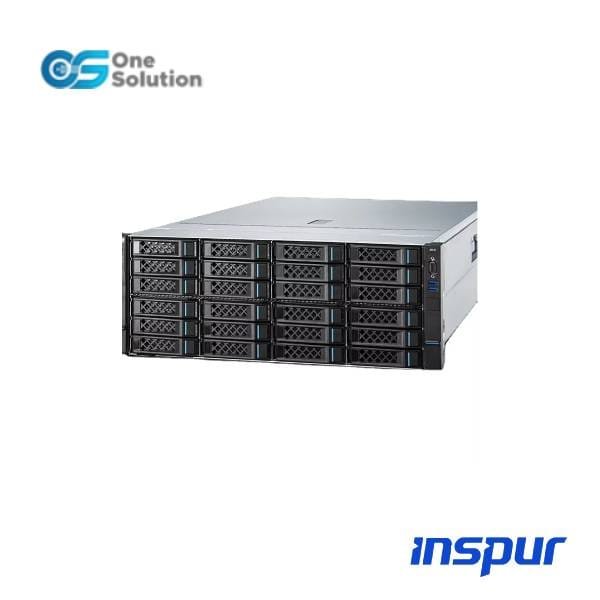

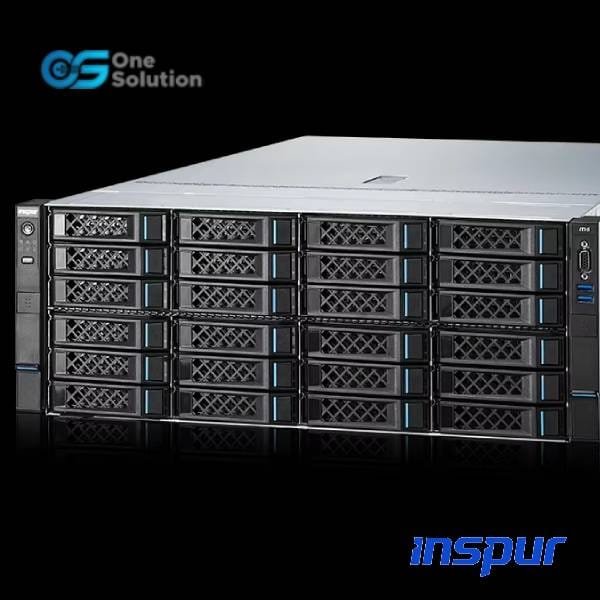

Inspur NF5466M5 Server Overview

Inspur NF5466M5 Server is a 4U dual-sockets storage-optimized rack-mounted server based on Intel Xeon Scalable processors. NF5466 is aimed to satisfy the needs of customers in the radio and television, communication, Internet, transportation, public security, medical care, education, finance and other industries.

Quick Spec

Table 1 shows the quick spec.

Model	NF5466M5
Specifications	4U rack-mounted server
Processor	Supporting 1-2 Intel Xeon Scalable processors (3100, 4100, 5100, 6100, 8100 series) : with up to 28 cores (2.5GHz), maximum frequency 3.6GHz (4 cores); Two UPI interconnecting links, of 10.4GT/s maximum ; Maximum L3 level cache 1.375MB per core; Maximum thermal design power 205W
GPU	Supporting up to 2 full-width GPUs or 6 single-width GPUs
Chipset	Intel C622
Memory	Supporting up to 24* 2666MT/s RDIMM/LRDIMM/DIMMs (each processor supporting 6 memory channels and each channel supporting 2 memory slots).
Memory	Supports ECC, memory mirroring and memory leveled protection..
Max memory capacity	RDIMM: Two processors support at most 24* 64GB memories with capacity up to 1.5TB LRDIMM: Two processors support at most 24* 128GB memories with capacity up to 3TB

Product Details

Inspur NF5466M5 server provides these features:

Massive storage

Supporting up to 44* 3.5 hard drives + 4* 2.5 hard drives.

Supporting up to 4* NVMe, meeting the demand of massive data fast access and low system power consumption in cloud computing, Internet and other industries.

Flexible storage

Possibility of using one raid card to manage all hard drives to reduce costs.

Supporting multiple kinds of storage media, an ideal infrastructure for distributed storage.

Powerful performance

Adopts the cutting-edge Intel Xeon Scalable processors, which provide up to 28-core high-frequency CPUs.

Supporting up to 2 full-width or 6 single-width GPUs to satisfy the needs in IVA scenario.

Smart management

Compatible with the New-generation Inspur BMC, for management tasks automation, ensuring a stable server operation

Supporting ISPIM which is Inspur self-developed infrastructure management platform that provides real-time status collections and alarms system.

The Bluetooth-enabled smart management APP provides an easy and efficient O&M management.

Inspur NF5466M5 Server Specification

Inspur NF5466M5 Server Specification
Specifications	4U rack-mounted server
Processor	Supporting 1-2 Intel ® Xeon® Scalable processors (3100, 4100, 5100, 6100, 8100 series) : with up to 28 cores (2.5GHz), maximum frequency 3.6GHz (4 cores); Two UPI interconnecting links, of 10.4GT/s maximum ; Maximum L3 level cache 1.375MB per core; Maximum thermal design power 205W
GPU	Supporting up to 2 full-width GPUs or 6 single-width GPUs
Chipset	Intel C622
Memory	Supporting up to 24* 2666MT/s RDIMM/LRDIMM/DIMMs (each processor supporting 6 memory channels and each channel supporting 2 memory slots).
Memory	Supports ECC, memory mirroring and memory leveled protection..
Max memory capacity	RDIMM: Two processors support at most 24* 64GB memories with capacity up to 1.5TB LRDIMM: Two processors support at most 24* 128GB memories with capacity up to 3TB
Storage	Front panel:
	24* 3.5” SATA/SAS/SSD hot-pluggable Rear panel:
	16* 3.5” SATA/SAS/SSD hot-pluggable, or 12* 3.5” SATA/SAS/SSD + 4* 2.5” SATA/SAS/SSD/NVMe
	Internal storage:
	4* 3.5” SATA/SAS hot-pluggable
M.2 & SD	Two PCIe M.2 or two SATA M.2 Two TF cards
Storage controller	Integrated SATA controller, and supports PCIe external RAID controller
Network interface	Supporting OCP network card or PHY cards, and PCIe external card
Network interface	Supporting eight standard PCIe at most, one OCP network card (connector A) slot and one PHY card (connector C) slot
I/O expansion slots	Riser module 1: 3 PCIe 3.0 x8 interfaces
	Riser module 2: 3 PCIe3 .0 x8 interfaces
	Riser module 3: 2 PCIe 3.0 x8 interfaces
Interfaces	Front (chassis handle):
	1 VGA + 1 USB3.0 + 1 USB2.0 (supporting LCD)
	Rear:
	1 RJ45 + 1 VGA + 2 USB.3.0 + 1 COM
Fan	Supporting 4* 8056 N + 1 redundant fans
Power supply	1 + 1 redundancy power supply of 800W/1300W and higher
System management	One integrated independent 1000 Mbps network interface for remote management
Operating system	Microsoft Windows Server 2012/2016; SUSE Linux Enterprise Server 12; Red Hat Enterprise 7; CenterOS 7; Kylin 7.4
Mainframe dimensions	446 (W) x 174.4 (H) x 818.7 (D) (mm)
