Name: HPE Aruba JL728A - Aruba 6200F Series Switch
Brand: One Solution Hardware Co

HPE Aruba JL728A Overview

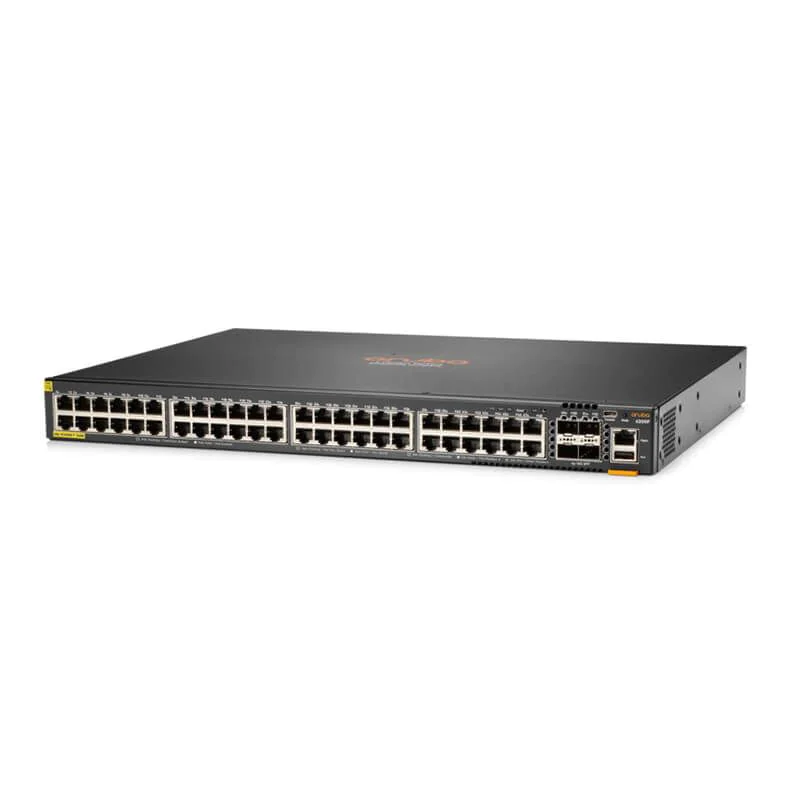

The JL728A is an HPE Aruba 6200F 48G Class4 POE 4SFP+ 740W Switch.

Table 1 shows the quick spec of the JL728A.

Enterprise-class connectivity with support for ACLs, robust QoS, and common protocols such as static and Access OSPF routing.
Scalability with 8 member VSF stacking. 24 and 48-port fixed and modular switch models can stack together for up to 384 ports.
Models include modular switches with 1/10GbE uplinks, LRM, and MACSec 256, fixed switches with either 1/10GbE SFP+ or 1GbE SFP uplinks, and options that support 30W to 60W of PoE per port.
Intelligent monitoring and visibility via Aruba Network Analytics Engine. Aruba NetEdit support for automation, configuration and verification. One touch deployment using the Aruba CX Mobile App.
Flexible, modular switch models support hot-swappable, redundant power supplies and fans for enhanced resiliency.
Aruba Dynamic Segmentation enables enhanced security and simple access for users and IoT.

JL728A Specification

JL728A Specifications
Model	JL728A
Product Description	HPE Aruba 6200F 48G Class4 PoE 4SFP+ 740W Switch
Ethernet Ports	48 x Gigabit Ethernet (Class 4 PoE)
SFP+ Ports	4 x 10 Gigabit Ethernet
Power over Ethernet (PoE)	740W
Power consumption	76W at 230 VAC
Input voltage	100V-120V/200V-240V
Ports	48x 10/100/1000BASE-T Class 4 PoE ports 4x 1/10G SFP ports Supports PoE Standards IEEE 802.3af, 802.3at 1x USB-C Console Port 1x OOBM 1x USB Type-A Host port 1x Bluetooth Adapter to be used with Aruba CX Mobile App
Latency	1 Gbps: 2.28 μSec 10 Gbps: 1.46 μSec
Routing/switching capacity	176 Gbps
Stacking capabilities	8 members
Throughput	Up to 130.9 Mpps
Memory and processor	Quad Core ARM Cortex™ A72 @ 1.8 GHz
Power supply name	Fixed power supply (950W) Up to 740W of Class 4 PoE Power
PoE capability	740W
Weight	5.10 kg (11.24 lbs)
Dimensions	4.39 x 44.2 cm x 32.7 cm (1.73 x 17.4 x 12.9 in)
