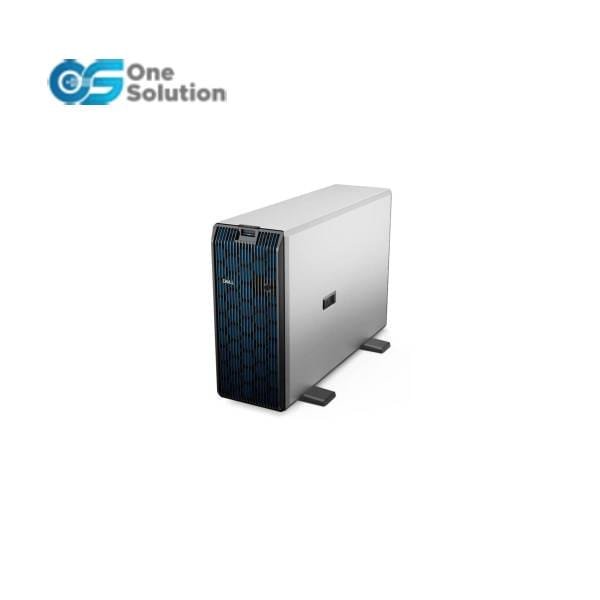

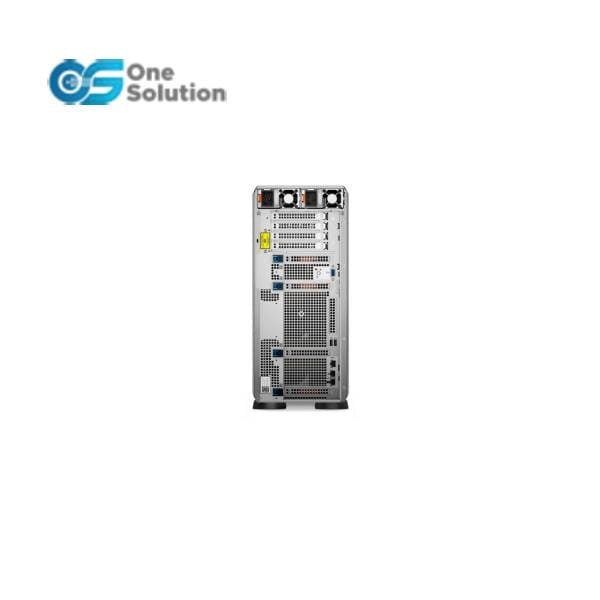

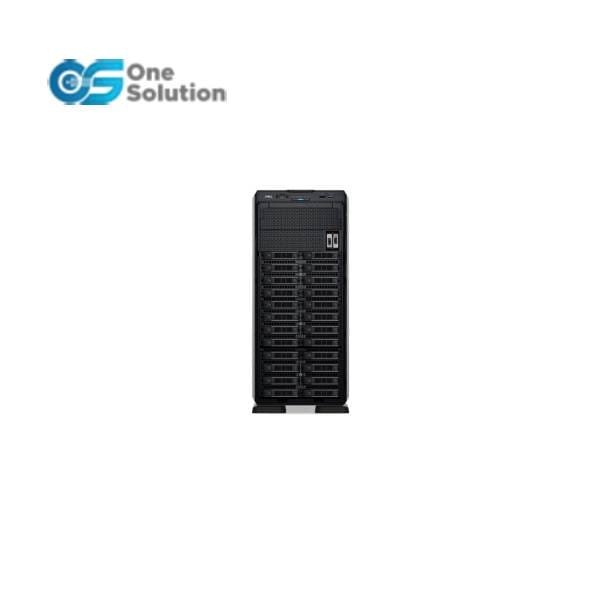

Dell PowerEdge T550 2-Way 5U 8-Bay 3.5-inch 15th Generation Tower Server
Flexible two-socket tower server for enterprise workloads outside of the
traditional data center
The Dell PowerEdge T550 balances expandability
and performance and offers advanced technologies such
as accelerators to address enterprise-class workloads.
Product Description
Description
The Dell EMC PowerEdge T550 is
designed to address enterprise-class
workloads.
Ideal for:
• Business critical workloads
• Database and Analytics
• Virtualization
• AI/ML and inferencingInnovate at scale with an expandable tower server for enterprise workloads
The Dell EMC PowerEdge T550, powered by the 3rd Generation Intel® Xeon® Scalable processors, is an enterpriseclass tower server that offers advanced technologies and support for accelerators. The PowerEdge T550 provides
office-friendly acoustics, ease of management and expandability for growth and performance. Powerful and versatile,
the PowerEdge T550 addresses business critical workloads, cloud infrastructure, and database management as well
as enterprise level requirements for data analysis, virtualization, and AI/ML/inferencing.
PowerEdge T550 Specification
PowerEdge T550 Specification |
|
| Processor | Up to two 3rd Generation Intel® Xeon® Scalable processors with up to 32 cores per processor |
| Operating System | Canonical Ubuntu Server LTS Citrix Hypervisor Microsoft Windows Server with Hyper-V RedHat Enterprise Linux SUSE Linux Enterprise Server VMware ESXi |
| Memory (RAM) | DIMM Speed Up to 3200 MT/sMemory Type RDIMM Memory Module Slots Maximum RAM |
| Storage | Front Bays Up to 8 x 2.5-inch SAS/SATA (HDD) max 120 TB Up to 16 x 2.5-inch SAS/SATA (HDD) max 240 TB Up to 24 x 2.5-inch SAS/SATA (HDD) max 360 TB Up to 8 x 3.5-inch SAS/SATA (HDD/SAS) max 120 TB Up to 8 x 3.5-inch SAS/SATA (HDD) + 8 x 2.5-inch NVMe (SSD) max 240 TB |
| Storage Controllers | Internal Controllers PERC H345, PERC H355, PERC H755, PERC H755N, HBA355iExternal Controllers PERC H840, HBA355e Software RAID Internal Boot |
| Power Supplies | 600W Platinum 100–240 VAC or 240 VDC, hot swap redundant 700W Titanium 200–240 VAC or 240 VDC, hot swap redundant 800W Platinum 100–240 VAC or 240 VDC, hot swap redundant 1100W DC/-48–(-60) V 1100W Titanium 100–240 VAC or 240 VDC, hot swap redundant 1400W Platinum 100–240 VAC or 240 VDC, hot swap redundant 1800W Titanium 200–240 VAC or 240 VDC, hot swap redundant 2400W Platinum 100–240 VAC or 240 VDC, hot swap redundant Hot swap power supplies with full redundancy option |
| Ports | Network Options 2 x 1GbE LOM and OCP x16 3.0 (optional)Front Ports 1 x Dedicated iDRAC Direct micro-USB (optional) 1 x USB 2.0 1 x USB 3.0 Rear Ports Internal Ports |
| Slots | PCIe 5 x PCIe Gen4 slots + 1 x PCIe Gen3 slot 3 x16 Gen4 (x16 connector) full height, half length 1 x4 Gen3 (x8 connector) full height, half length 2 x16 Gen4 (x16 connector) full height, full length (optional)Video Card 1 x VGA |
| Bezel | Optional security bezel |
| Form Factor | 5U Tower Server |
| Dimensions and Weight | Height 459.0 mm (18.07 inches)Width 200.0 mm (7.87 inches) Depth Weight |
| Rack Support |
System is optimized to fit into EIA-310 spec Racks. Dell does not offer specific rails for this platform. |
