Name: Dell PowerEdge R840 Rack Server
Brand: One Solution Hardware Co

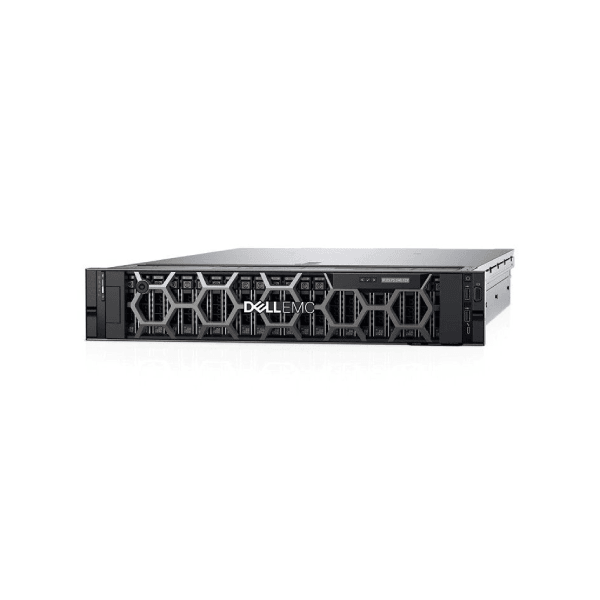

Dell PowerEdge R840 Rack Server

Dell R840 62302/28G DDR4/2600G SAS 2.5 10k/H330/DVD/41GE/2*1100W/2.5-8 Overview

The Dell R840 6230*2 Server is a powerful server that can handle demanding workloads with ease. It comes equipped with two Intel Xeon Gold 6230 processors, each with 20 cores and 40 threads, for a total of 40 cores and 80 threads. Additionally, it features 2*8G DDR4 memory, 2*600G SAS 2.5 10k hard drives, and 4*1GE network interfaces.

Quick Spec

Table 1 shows the quick spec of Dell R840 6230*2 Server:

Parameter	Value
Processor	2 x Intel Xeon Gold 6230 (20 core, 40 thread, 2.10 GHz, 27.5 MB)
Memory	2*8G DDR4
Hard Drive	2*600G SAS 2.5 10k
Network Interface	4*1GE
Power Supply	2*1100W

Product Features

Two Intel Xeon Gold 6230 processors for high-performance computing
40 threads and 20 cores per processor for parallel processing
2*8G DDR4 memory for fast data access and manipulation
2*600G SAS 2.5 10k hard drives for reliable storage and fast read/write speeds
DVD drive for easy installation and backups

Product Applications

Virtualization
Database management
Data analytics
High-performance computing
Artificial intelligence and machine learning

Supported Options

Table 2 shows the supported options of Dell R840 6230*2 Server:

Accessory	Model
Memory	16G DDR4, 32G DDR4, 64G DDR4
Hard Drive	1TB SAS 2.5 10k, 2TB SAS 2.5 10k, 4TB SAS 2.5 10k
Network Interface	10GE, 40GE, 100GE

Dell R840 62302/28G DDR4/2600G SAS 2.5 10k/H330/DVD/41GE/2*1100W/2.5-8 Specification

DELLR840-9 Specifications
Model	DELLR840-9
CPU	Dell R840 6230*2 (20 core, 40 thread, 2.10 GHz, 27.5 MB)
RAM	2*8G DDR4
Hard Drive	2*600G SAS 2.5 10k
RAID	H330
Optical Drive	DVD
Network Interface Card	4*1GE
Power Supply	2*1100W
Form Factor	2.5-8
Operating System	Not included
Graphics Card	Not included
USB Ports	Multiple USB 3.0 and 2.0 ports
Expansion Slots	Up to 12 PCIe 3.0
Max Memory	6 TB
Max Storage	48 TB
RAID Levels	0, 1, 5, 6, 10, 50, 60
Hot Swap Bays	16x 2.5" hot-swap bays
Remote Management	iDRAC9 with Lifecycle Controller
Dimensions (H x W x D)	87.3 x 447 x 800 mm
