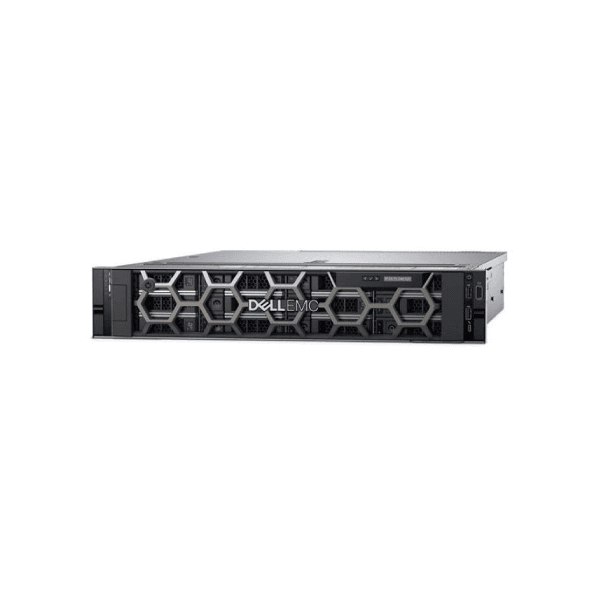

Name: Dell PowerEdge R540 Rack server
Brand: One Solution Hardware Co

Dell PowerEdge R540 Rack server

Dell 2U R540 5218/8G1/600G SAS 10K1/H330/No DVD/750W*1/3.5-12 Overview

The Dell 2U R540 5218 Server is a powerful 2U server designed for performance and reliability. With a 16 core processor and 32 threads, this server can handle even the most demanding applications with ease.

Quick Spec

Table 1 shows the quick spec of Dell 2U R540 5218 Server.

Parameter	Value
Processor	Intel Xeon Silver 5218 (16 core, 32 thread, 2.30 GHz, 22 MB)
Memory	8GB DDR4
Storage	600GB SAS 10K
RAID Controller	H330
Power Supply	750W

Product Features

High-performance 16 core processor
32 threads for efficient multitasking
Large memory capacity for running multiple applications simultaneously
Fast SAS storage for quick data access
Reliable H330 RAID controller for data protection

Product Applications

Virtualization
Big data analytics
Database management
High-performance computing
Video streaming

Supported Options

Table 2 shows the supported options of Dell 2U R540 5218 Server.

Accessory	Model
Memory	16GB DDR4
Storage	1TB SAS 10K
Network Adapter	Intel X550-T2 Dual Port 10GbE

Dell 2U R540 5218/8G1/600G SAS 10K1/H330/No DVD/750W*1/3.5-12 Specification

DELLR540-24 Specifications
Model	DELLR540-24
CPU	Dell 2U R540 5218 (16 core, 32 thread, 2.30 GHz, 22 MB)
RAM	8G*1 Memory
Hard Drive	600G SAS 10K*1
RAID	H330
Optical Drive	No DVD
Network Interface Card	4*1GE
Power Supply	750W*1
Form Factor	3.5inch Hard Drive-12
Operating System	Not included
Graphics Card	Not included
USB Ports	Multiple USB 3.0 and 2.0 ports
Expansion Slots	Up to 7 PCIe 3.0
Max Memory	3 TB
Max Storage	Up to 120TB
RAID Levels	0, 1, 5, 6, 10, 50, 60
Hot Swap Bays	12x 3.5" hot-swap bays
Remote Management	iDRAC9 with Lifecycle Controller
Dimensions (H x W x D)	8.73 x 48.23 x 75.37 cm
