Name: Cisco C9300-48U-A - Cisco Catalyst 9300 Switches Series
Brand: One Solution Hardware Co

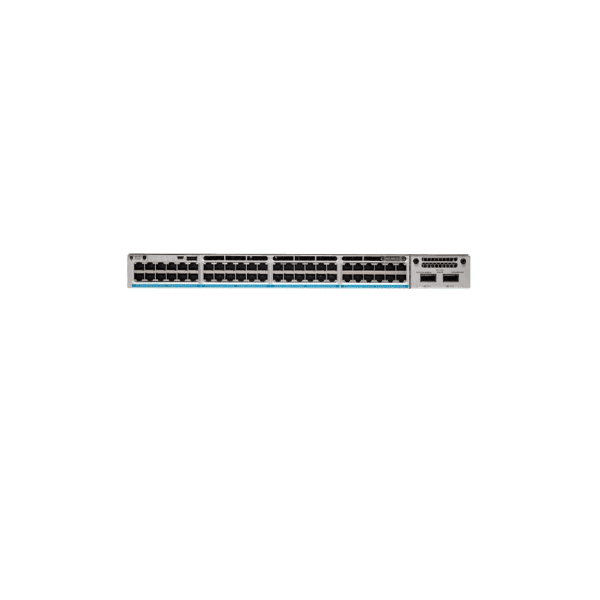

cisco C9300-48U-A Overview

The Cisco Catalyst 9300 Series Switches are Cisco's lead stackable enterprise switching platform built for security, IoT, mobility, and cloud. C9300-48U-Ais 48-port UPOE, Network Advantage Switch of 9300 series. Catalyst 9300 Seriesare the next generation of the industry's most widely deployed switching platform.

Quick Spec

Table 1 shows the quick spec.

Product Code	C9300-48U-A
Product Description	Catalyst 9300 48-port UPOE, Network Advantage
Total 10/100/1000 or Multigigabit copper ports	48 Cisco UPOE
Default AC power supply	1100W AC
Available PoE power	822W
Dimensions (H x W x D)	1.73 x 17.5 x 17.5 Inches
Weight	16.33 Pounds

C9300-48U-A Specification

C9300-48U-A Specifications
Total 10/100/1000 or Multigigabit copper ports	48 Cisco UPOE
Default AC power supply	1100W AC
Available PoE power	822W
Cisco StackWise-480	Yes
Cisco StackPower	Yes
Default power supply	PWR-C1-1100WAC-P/2
Switching capacity	256 Gbps on 48-port Gigabit Ethernet model
Stacking bandwidth	480 Gbps
Total number of MAC addresses	32,000
Total number of IPv4 routes (ARP plus learned routes)	32,000 (24,000 direct routes and 8000 indirect routes)
IPv4 routing entries	32,000
IPv6 routing entries	16,000
Multicast routing scale	8000
QoS scale entries	5120
ACL scale entries	5120
Packet buffer per SKU	16 MB buffer for 24- or 48-port Gigabit Ethernet models
FNF entries	64,000 flow on 24- and 48-port Gigabit Ethernet models
DRAM	8 GB
Flash	16 GB
VLAN IDs	4000
Total Switched Virtual Interfaces (SVIs)	2000
Jumbo frames	9198 bytes
Total routed ports per 9300 Series stack	208
Wireless bandwidth per switch	Up to 96 Gbps on 48-port Gigabit Ethernet model
Forwarding rate with stacking	547.62 Mpps
Dimensions (H x W x D)	1.73 x 17.5 x 16.1 Inches
Weight	17.03 Pounds
Mean time between failures (hours)	227,410
Safety certifications	● UL 60950-1 ● CAN/CSA-C222.2 No. 60950-1 ● EN 60950-1 ● IEC 60950-1 ● AS/NZS 60950.1 ● IEEE 802.3
Electromagnetic emissions certifications	● 47 CFR Part 15 ● CISPR22 Class A ● EN 300 386 V1.6.1 ● EN 55022 Class A ● EN 55032 Class A ● CISPR 32 Class A ● EN61000-3-2 ● EN61000-3-3 ● ICES-003 Class A ● TCVN 7189 Class A ● V-3 Class A ● CISPR24 ● EN 300 386 ● EN55024 ● TCVN 7317
Environmental	Reduction of Hazardous Substances (ROHS) 5
