Name: Cisco C9300-24T-E - Cisco Switch Catalyst 9300 Switches Series
Brand: One Solution Hardware Co

Cisco C9300-24T-E Overview

The Cisco® Catalyst® 9300 Series Switches are Cisco’s lead stackable enterprise switching platform built for security, IoT, mobility, and cloud. C9300-24T-E is 24-port data only, Network Essentials Switch of 9300 series.

Quick Spec

Table 1 shows the quick spec.

Product Code	C9300-24T-E
Product Description	Catalyst 9300 24-port data only, Network Essentials
Total 10/100/1000 or Multigigabit copper ports	24
Default AC power supply	350W AC
Available PoE power	--
Dimensions (H x W x D)	1.73 x 17.5 x 17.5 Inches
Weight	16.33 Pounds

Product Details

The module slot on the right of the front Panl dosen't include the module. Network Modules (providing 1G/10G/40G ports) should be purchased Seperately.

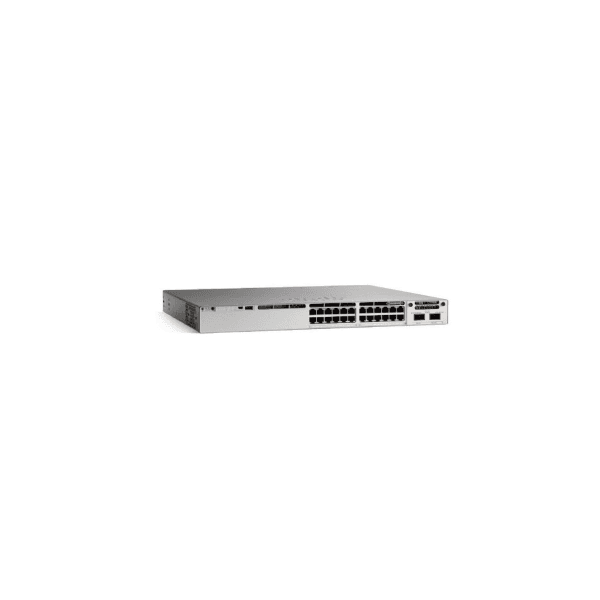

①	Blue Beacon-for easy of serviceability
②	optional wireless console access with Bluetooth
③	Best HA-NSF/SSO
④	24 1G ports

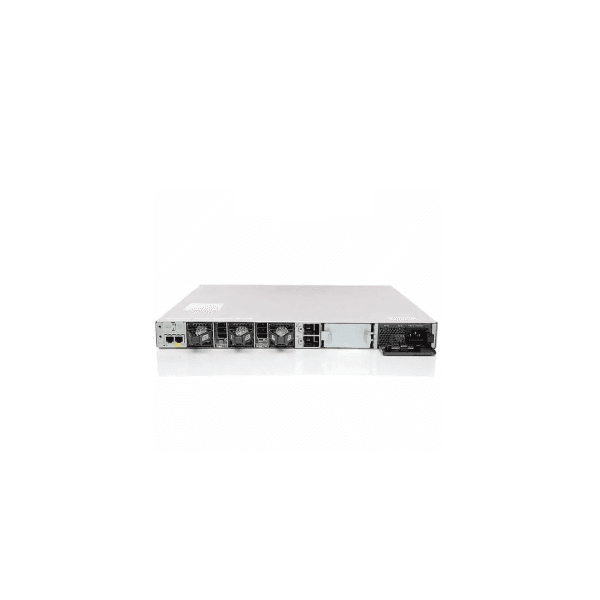

①	Local Storage USB 3.0 SSD pluggable
②	Stackwise-480-Industry’s highest stack bandwidth
③	Modular,Redundant Fans
④	Intellgent Power management-Cisco StackPower
⑤	Optional Power Supply
⑥	High- Efficiency Power Supply

C9300-24T-E Specification

C9300-24T-E Specifications
Total 10/100/1000 or Multigigabit copper ports	24
Default AC power supply	350W AC
Available POE power	--
Cisco StackWise-480	Yes
Cisco stackPower	Yes
Default power supply	PWR-C1-350WAC-P/2
Switching capacity	208 Gbps on 24-port Gigabit Ethernet model
Stacking bandwidth	480 Gbps
Total number of MAC addresses	32,000
Total number of IPv4 routes (ARP plus learned routes)	32,000 (24,000 direct routes and 8000 indirect routes)
IPv4 routing entries	32,000
IPv6 routing entries	16,000
Multicast routing scale	8000
QoS scale entries	5120
ACL scale entries	5120
Packet buffer per SKU	16 MB buffer for 24- or 48-port Gigabit Ethernet models
FNF entries	64,000 flow on 24- and 48-port Gigabit Ethernet models
DRAM	8 GB
Flash	16 GB
VLAN IDs	4000
Total Switched Virtual Interfaces (SVIs)	2000
Jumbo frames	9198 bytes
Total routed ports per 9300 Series stack	208
Wireless bandwidth per switch	Up to 48 Gbps on 24-port Gigabit Ethernet model
Forwarding rate	154.76 Mpps
Dimensions (H x W x D)	1.73 x 17.5 x 17.7 Inches
Weight	16.03 Pounds
Mean time between failures (hours)	314,790
Safety certifications	● UL 60950-1 ● CAN/CSA-C222.2 No. 60950-1 ● EN 60950-1 ● IEC 60950-1 ● AS/NZS 60950.1 ● IEEE 802.3
Electromagnetic emissions certifications	● 47 CFR Part 15 ● CISPR22 Class A ● EN 300 386 V1.6.1 ● EN 55022 Class A ● EN 55032 Class A ● CISPR 32 Class A ● EN61000-3-2 ● EN61000-3-3 ● ICES-003 Class A ● TCVN 7189 Class A ● V-3 Class A ● CISPR24 ● EN 300 386 ● EN55024 ● TCVN 7317
Environmental	Reduction of Hazardous Substances (ROHS) 5
