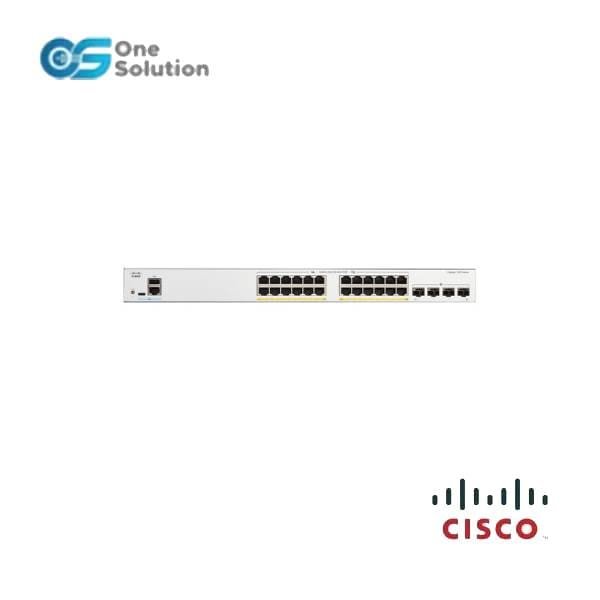

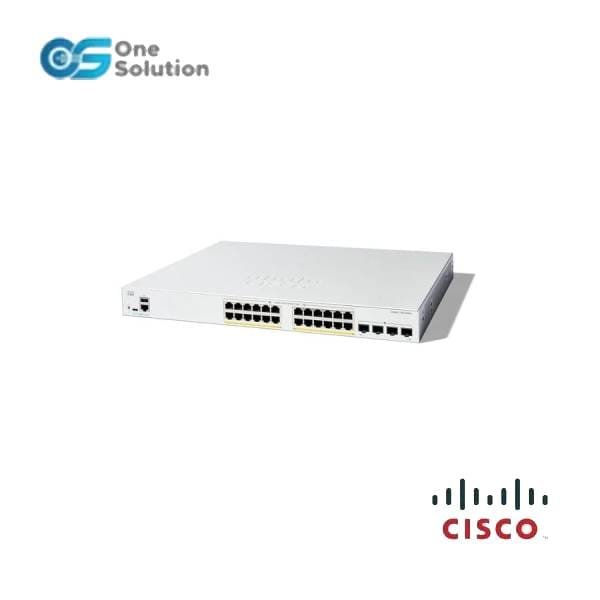

Name: Cisco C1300-24FP-4G - Cisco Catalyst 1300 Series Switches
Brand: One Solution Hardware Co

C1300-24FP-4G Overview

The Cisco C1300-24FP-4G is a versatile and robust networking solution designed for efficient power and high-speed connectivity. Featuring 24x 10/100/1000 PoE+ ports with a 370W power budget and 4x Gigabit SFP uplink ports, this switch enables seamless integration with a variety of network devices. Ideal for growing businesses or enterprise environments, the Cisco C1300-24FP-4G delivers reliable performance and scalability.

Quick Spec

Brand	Cisco
Model	C1300-24FP-4G
PoE+ Ports	24x 10/100/1000
Power Budget	370W
Uplink Ports	4x Gigabit SFP

Product Features

Provides 24 high-speed PoE+ ports for power-hungry devices
370W power budget suitable for IP cameras, VoIP phones, and access points
4x Gigabit SFP uplink ports for flexible network expansion
Layer 2 switching capabilities for efficient network management
Energy-efficient design with advanced power-saving features

Product Applications

Small to medium-sized enterprise offices needing reliable network connectivity and PoE support
Large campus environments requiring scalable network infrastructure
Retail stores and service providers needing high-performance data and power transmission

C1300-24FP-4G Specification

C1300-24FP-4G Specifications
Capacity in millions of packets per second (mpps) (64-byte packets)	41.66
Switching capacity in gigabits per second (Gbps)	56.0
Power dedicated to PoE	375W
Number of ports that support PoE	24
System power consumption	110V=36.9W 220V=37.2W
Power consumption (with PoE)	110V=452.3W 220V=436.9W
Heat dissipation (BTU/hr)	1542.3
Idle Power	110V=21.7W 220V=22.5W
Total system ports	28 x Gigabit Ethernet
RJ-45 ports	24 x Gigabit Ethernet
Combo ports (RJ-45 + Small Form-Factor Pluggable [SFP])	4 x SFP
Packet buffer	1.5 MB
Unit dimensions (W x D x H)	444.3 x 350 x 43.94 mm (17.49 x 13.77 x 1.73 in)
Unit weight	4.6 kg (10.14 lb)
Fan (number)	1
Acoustic noise	25°C: 39 dBA
MTBF at 25°C (hours)	500,161
